Kea DHCP

In this Chapter

• Lease allocation
• Client classification
• DHCP options
• DHCP reservations
• Shared subnets
• Questions & Answers

DHCP options

DHCP options

• DHCP options can be configured in different scopes in the Kea configuration
  • Global
  • Class
  • Subnet
  • Pools
  • Reservations

Global DHCP options (1/2)

"Dhcp4": {
    "option-data": [{
	   "name": "domain-name-servers",
	   "code": 6,
	   "space": "dhcp4",
	   "csv-format": true,
	   "data": "192.0.2.1, 192.0.2.2"
	},
	...
    ]}

Global DHCP options (2/2)

• If the default values are used, the fields code, space and csv-format can be omitted

"Dhcp4": {
    "option-data": [{
           "name": "domain-name-servers",
           "data": "192.0.2.1, 192.0.2.2"
        },
        ...
    ]}

Subnet specific DHCP option

[...]
   "subnet4": [ {
            "subnet": "192.0.2.0/24",
            "pools": [ { "pool": "192.0.2.100 - 192.0.2.200" } ],
            "option-data": [{
                    "name": "routers",
                    "data": "192.0.2.1" },
                {
                    "name": "domain-name",
                    "data": "a.example.com" }
            ]},
[...]

Client class options

"client-classes": [{
        "name": "Zimbutsio-Server",
        "test": "option[vendor-class-identifier].text == 'Zimbutsio'",
        "option-data": [ {
                "name": "log-servers",
                "data": "192.0.2.42"
            }]
    }],
[...]

Defining custom DHCPv4 options (1/2)

• Sometimes it is required to define custom DHCP options that are not part of the DHCP standards.
  • These can be vendor specific options, or new DHCP options that are not yet implemented in Kea DHCP

Defining custom DHCPv4 options (2/2)

{
    "Dhcp4": {
        "option-def": [{
                "name": "my-message",
                "code": 234,
                "type": "string",
                "array": false,
                "record-types": "",
                "space": "dhcp4",
                "encapsulate": "" }],
        "option-data": [{
                "name": "my-message",
                "space": "dhcp4",
                "csv-format": true,
                "data": "Hello World" }],
[...]

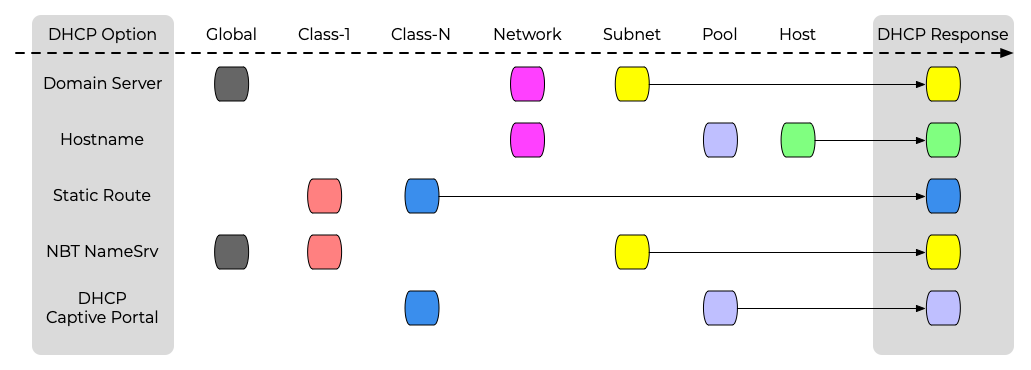

Option assignment order

DHCP reservations

Why DHCP reservations

• Security policies
• Stable addressing (server)
• IP bound licenses
• Captive portal (KNOWN vs. UNKNOWN clients)

DHCP reservations

• Kea DHCP supports reservations of client leases based on
  • Hardware interface address (MAC-Address)
  • DHCP Unique ID (DUID)
  • Relay-Circut-ID (DHCPv4)
  • Client-ID / Hostname (DHCPv4)
  • flex.id

DHCP reservation parameter

• Alongside IP-Address leases, reservations can also reserve a number of DHCP parameters for a client
  • Hostname
  • DHCP options
  • Reservation-client-classes
  • Boot-file-name (BOOTP/DHCPv4)
  • Next-server (BOOTP/DHCPv4)
  • Server-hostname (BOOTP/DHCPv4)

Global vs. Subnet reservations

• DHCP reservations can optionally be defined on a global scope
  • Global reservations can be used to assign a fixed hostname or other options to a client
  • Kea does not prevent the definition of DHCP parameters on the global level that are only useful in an subnet scope (like IP address or IPv4 default route). Be careful!
• The common case is to have reservations in the subnet or shared-subnet scope
  • Kea 1.9+ does allow for reservations to be defined on a global and subnet level (at the same time)

Example of global reservation

"Dhcp4:" {
    # This specifies global reservations. They will apply to all subnets that
    # have global reservations enabled.

    "reservations": [
    {  "hw-address": "aa:bb:cc:dd:ee:ff",  "hostname": "hw-host-dynamic"  },
    {  "hw-address": "01:02:03:04:05:06",  "hostname": "hw-host-fixed",  "ip-address": "192.0.1.77"  }, # risky!
    {  "circuit-id": "'office042'",        "hostname": "circuit-id-host"  },
[...]

in-pool vs out-of-pool reservations

• Host reservations can be inside a dynamic DHCP pool or outside a dynamic DHCP pool
• Reservations that are inside a pool can lead to DHCP conflicts
  (https://kea.readthedocs.io/en/latest/arm/dhcp4-srv.html#conflicts-in-dhcpv4-reservations)
  and also might result in a performance loss (see DHCP tuning)

Dynamically manage DHCP reservations

• Small Kea deployments (small = a few hundred client machines) can have the DHCP reservations inside the Kea configuration file
• Larger deployments might want to change the DHCP reservations dynamically and programatically via the API
  • The Host Commands hook adds a number of new commands to Kea used to query and manipulate host reservations

Dynamically manage DHCP reservations

• The Host Commands hook requires a database for storing the host reservations
• If reservations are specified in both file and database, file reservations take precedence over the ones in the database.

Host Commands

Example command file to add a reservation (1/2)

• This command snippet can be used to create a new reservation inside the Kea Host database

$ cat reservation-add.json
{
  "command": "reservation-add",
  "service": [ "dhcp6" ],
  "arguments": {
    "reservation": {
      "duid": "01:02:03:04:05:06:07:08:09:0A",
      "hostname": "foo.example.com",
      "ip-addresses": [ "2001:db8:1::1" ],
      "option-data": [{
          "data": "4491",
          "name": "vendor-opts"
        },{
          "data": "3000:1::234",
          "name": "tftp-servers",
          "space": "vendor-4491"
        }],
      "subnet-id": 1
    }
  }
}

Example command file to add a reservation (2/2)

• The curl command can be used to send the request towards the Kea API

$ curl -s -X POST -H "Content-Type: application/json" \
  -d @reservation-add.json http://127.0.0.1:8000/ | jq
[
  {
    "result": 0,
    "text": "Host added."
  }
]

Example command file retrieving all reservations

• This command snippet can be used to retrieve all reservations from the Kea Host database

$ cat reservation-get-all.json
{
  "service": [
    "dhcp6"
  ],
  "command": "reservation-get-all",
  "arguments": {
    "subnet-id": 1
  }
}
$ curl -s -X POST -H "Content-Type: application/json" \
  -d @reservation-get-all.json http://127.0.0.1:8000/ | jq

Client classing in reservations

• Clients can be associated to a client-class using a reservation (using the Hardware-Address, DUID, Client-ID, Relay-ID)

[...]
  "subnet4": [
  {
     "subnet": "10.0.0.0/24",
     "pools": [ { "pool": "10.0.0.10-10.0.0.200" } ],
     "reservations": [{
          "hw-address": "01:02:03:04:05:06",
          "client-classes": [ "windows", "staff" ]
      }]
  }],
[...]

Performance tuning DHCP reservations (1/4)

• Kea DHCP must check for every lease request for conflicts with reservations. This can slow down the DHCP lease assignment process
  • In some cases, where reservations are not in use or used only in certain scopes, some of these checks can be disabled with the reservation-mode configuration parameter
  • The parameter can be specified at global, subnet, and shared-network levels.

"Dhcp4": {
    "subnet4": [{
        "subnet": "192.0.2.0/24",
        "reservation-mode": "disabled",
        ...
    }]
}

Performance tuning DHCP reservations (2/4)

Performance tuning DHCP reservations (3/4)

• Kea currently supports four types of identifiers:
  • hw-address
  • duid
  • client-id
  • circuit-id
  • flex-id
• For each incoming packet, Kea has to extract each identifier type and then query the database to see if there is a reservation by this particular identifier.

Performance tuning DHCP reservations (4/4)

• A parameter called host-reservation-identifiers takes a list of identifier types that Kea will check
  • For best performance the number of identifier types should be kept to a minimum, ideally one.

"host-reservation-identifiers": [ "circuit-id", "hw-address" ],
"subnet4": [{
        "subnet": "192.0.2.0/24",
        ...
    }]

Shared networks

Shared networks

• A shared subnet is a physical subnet with multiple IP networks
  • One shared subnet definition can contain two or more subnet definitions
  • Options can be defined on the shared-network, subnet and pool level
  • Without client classification, Kea might choose an IP address from any pool of all subnets inside the shared network

When to use shared networks

• Shared Subnets are adding complexity to a DHCP server configuration and should only be used if there is a good use case
  • Shared subnet are sometimes created if a larger number of IP addresses are needed in a network, but because of IPv4 address shortage no continuous range of IPv4 addresses are available
  • Another use case of shared subnets is a network where addresses from different IPv4 subnets (and possibly different network configuration) should be given to different network devices

Kea configuration shared network example

[...]
        "shared-networks": [
            {
                "name": "kea-lab01",
                "relay": { "ip-address": "192.0.2.1" },
                "subnet4": [{
                        "subnet": "192.0.2.0/24",
                        "option-data": [
                            { "name": "routers", "data": "192.0.2.1" }],
                        "pools": [{ "pool": "192.0.2.20 - 192.0.2.190" }]
                    }, {
                        "subnet": "10.0.0.0/24",
                        "option-data": [
                            { "name": "routers", "data": "10.0.0.1" }],
                        "pools": [{ "pool": "10.0.0.10 - 10.0.0.200"  }]
                    }]
	],
[...]

Client classification

DHCP client classes

• Kea DHCP can assign one or more client classes to client requests
• Depending on the client classes, different DHCP information can be send to the client:
  • DHCP-Options
  • IP-Addresses
  • BOOTP-Parameter inside DHCP responses
• Kea can select from multiple subnets / pools with the help of client classes

DHCP client classes

• Client classes can be built from various DHCP identifiers
  • Information from the client host
  • Information from the DHCP relay
  • Information from the DHCP packet path towards the DHCP server
• Client classification examines the incoming DHCP packet's contents and selects one or more class(es) based on configuration criteria

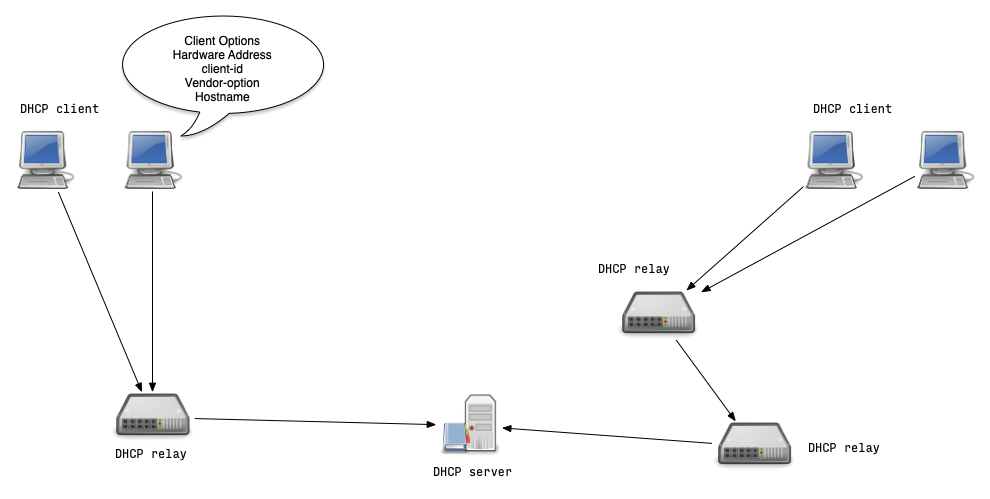

Where do DHCP identifiers come from (1/4)

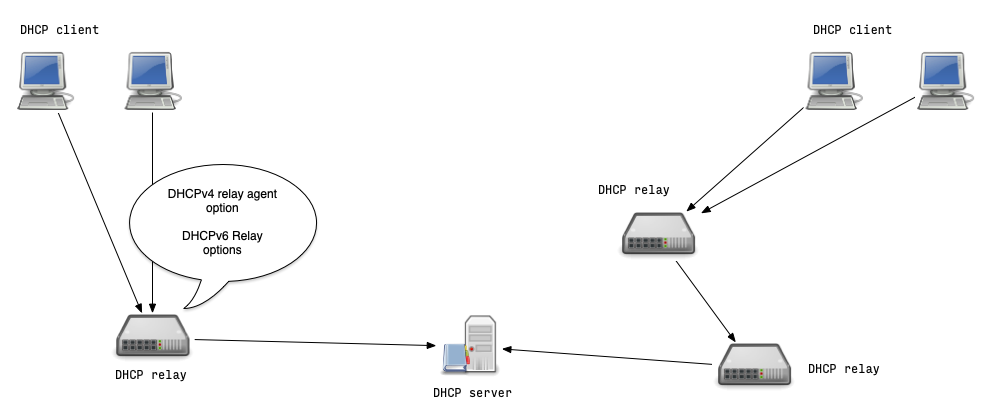

Where do DHCP identifiers come from (2/4)

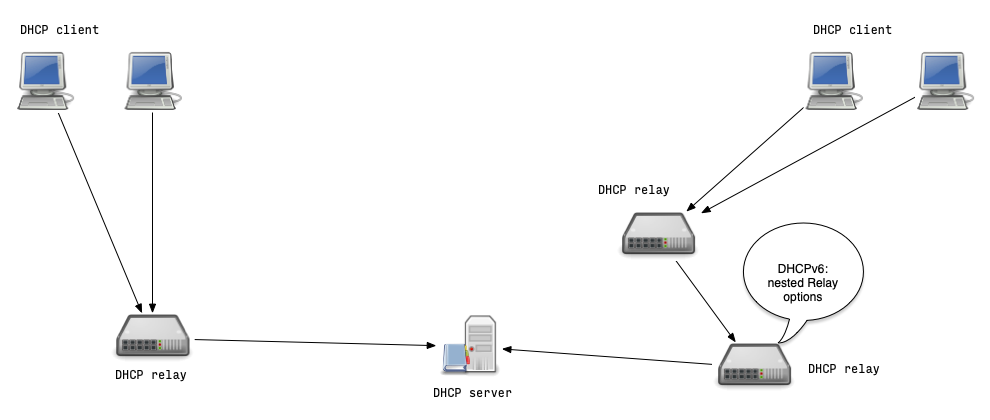

Where do DHCP identifiers come from (3/4)

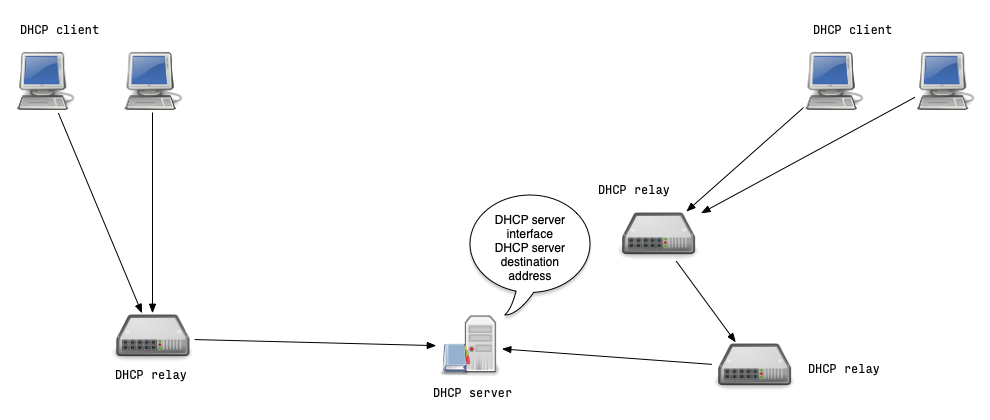

Where do DHCP identifiers come from (4/4)

Automatic vendor classing

• Kea DHCP automatically assigns a vendor client class if a vendor option (DHCPv4 option 60 or DHCPv6 option 16) is set in the DHCP request
• The content of that option is prepended with VENDOR_CLASS_ and the result is interpreted as a class
  • For example, modern cable modems send this option with value docsis3.0, so the packet belongs to class VENDOR_CLASS_docsis3.0

Automatic vendor classing example

• Example subnet selection based on the vendor option
  • A client must be in any of the client classes listed to get a lease from this subnet
  • The vendor options used in this exercise are examples and not the real-world vendor option values:

        "shared-networks": [
            {
                "name": "kea-net01",
                "relay": { "ip-address": "192.0.2.1" },
                "subnet4": [
                    {
                        "subnet": "192.0.2.0/24",
                        "client-class": "VENDOR_CLASS_windowsCE", # <-- Windows CE Clients will get
			                                          # an IP from this subnet
                        "option-data": [{
                                "name": "routers", "data": "192.0.2.1" }],
                        "pools": [{
                                "pool": "192.0.2.60 - 192.0.2.220" }]
                    },
                    {
                        "subnet": "10.0.0.0/24",
                        "client-class": "VENDOR_CLASS_fedoraLinux", # <-- Fedora-Linux Clients will
			                                            # get an IP from this subnet
                        "option-data": [
[...]

The KNOWN and UNKNOWN classes

• Kea automatically assigns classes based on host reservations
  • All clients with a host reservation will be in the KNOWN class
  • All client without reservation will be in the UNKNOWN class
• For example, these classes can be used to separate guests from staff clients

{
    "client-classes": [{
            "name": "dependent-class",
            "test": "member('KNOWN')",
            "only-if-required": true
    }]
}

Dynamic client classing based on expressions

• DHCP requests can be assigned one or more client classes
  • Expressions can be used to extract information from the DHCP request message
  • Logical and conditional expressions can be used to assign classes to the DHCP request

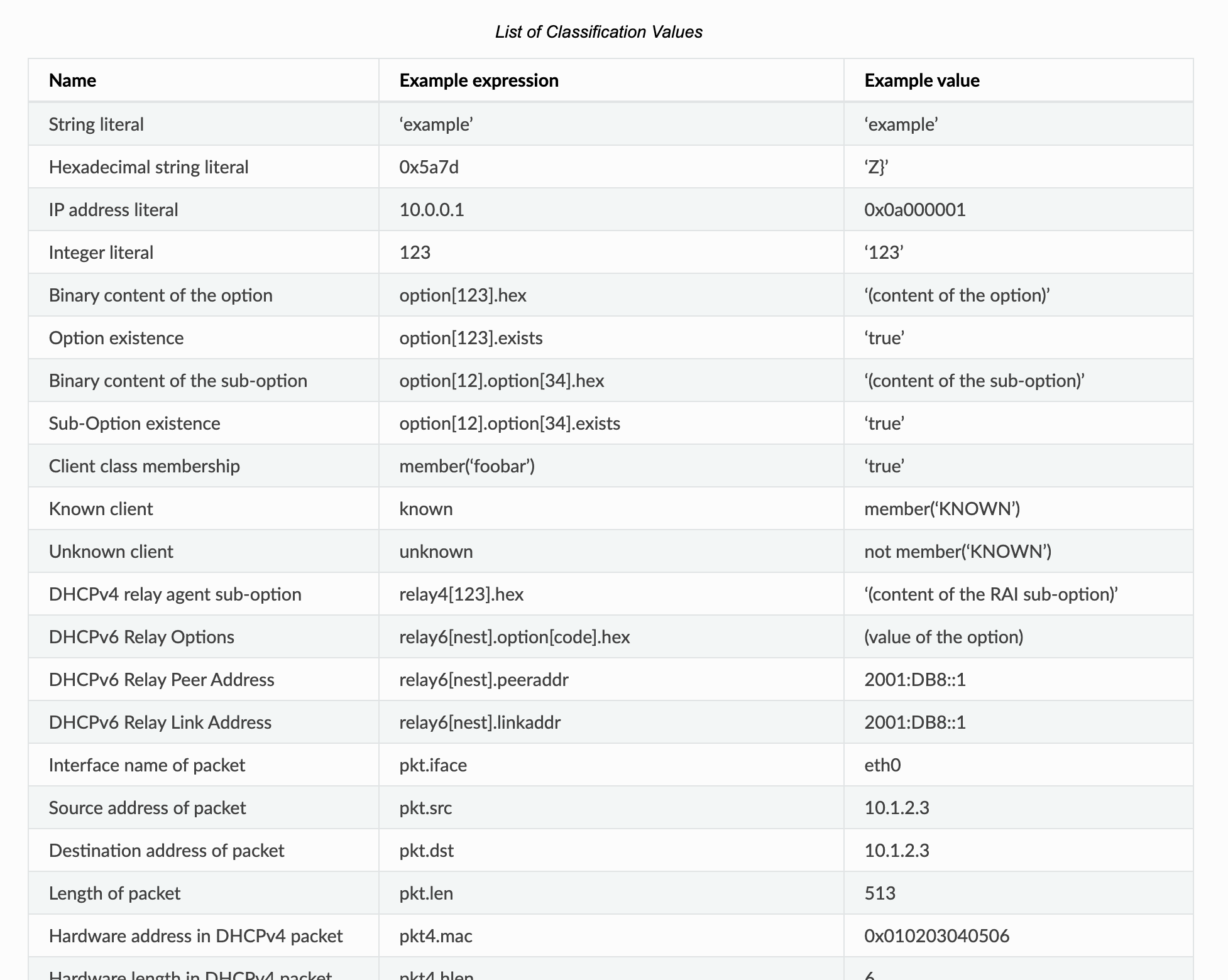

• List of available expressions
  https://kea.readthedocs.io/en/latest/arm/classify.html#using-expressions-in-classification@@html:%3C/div%3E@@

Dynamic client classing based on expressions

Client classification example (1/2)

• Configuration for dynamic client classing based on the vendor option (Option 60) content

"Dhcp4": {
   "client-classes": [
        {   "name": "windows",
            "test": "substring(option[60].hex,0,3) == 'win'",
            "option-data": [{
                    "name": "domain-name", "data": "win.example.com" }]
        },
        {   "name": "other",
            "test": "not(substring(option[60].hex,0,3) == 'win')",
            "option-data": [{
                    "name": "domain-name", "data": "other.example.com" }]
        }
    ],
[...]

Client classification example (2/2)

• The client class is used to select a subnet inside a shared network
  • Windows clients get IP addresses from the 1st subnet
  • Client with other operating systems get IP addresses from the 2nd subnet

        "shared-networks": [
            {
                "name": "kea-lab01",
                "relay": { "ip-address": "192.0.2.1" },
                "subnet4": [
                    {
                        "subnet": "192.0.2.0/24",
                        "client-class": "windows", # <-- all Windows Clients will
			                           # get IP addresses from this subnet
                        "option-data": [{
                                "name": "routers", "data": "192.0.2.1" }],
                        "pools": [{
                                "pool": "192.0.2.60 - 192.0.2.250" }]
                    },
                    {
                        "subnet": "10.0.0.0/24",
                        "client-class": "other", # <-- non Windows Clients will
			                         # get IP addresses from this subnet
                        "option-data": [
[...]

Client Classes with regular expressions

• Since Kea-DHCP Version 3.0 client classes can be selected based on regular expressions
• The following client class looks into the OUI-part of the hardware address and tests if they are from Apple Computers range of OUI-Adresses:

"client-classes": [
      {
        "name": "Apple-Computer",
        "test": "match('5c-1b-f4|a8-5b-b7|58-55-95|00-19-b8',hexstring(substring(pkt4.mac, 0, 3), '-'))"
      },
      [...]

• Client-Classing tests run for each incoming DHCP request
  • Complex regular expressions can be CPU intensive and can slow down the DHCP server

Classification via hooks

• Client classification via complex expressions can hurt the DHCP server performance
• Alternative: writing a custom hook for client classification

Debugging client classing (1/3)

• To debug client classing based on expressions, enable debug logging inside the Kea DHCP server
• Quick option: start Kea DHCP4 in debug mode from the command line. This will automatically enable the highest debugging level
  • on a busy server, this will create too much debug information (see next slide for an alternative)

[kea-server]# systemctl stop kea-dhcp4
[kea-server]# kea-dhcp4 -d -c /etc/kea/kea-dhcp4.conf

Debugging client classing (2/3)

• Alternative: enable the special kea-dhcp4.eval or kea-dhcp6.eval debug logger in the Kea configuration file

"Logging": {
    "loggers": [ {
        "name": "kea-dhcp4.eval",
        "output_options": [ {
            "output": "/var/log/kea-dhcp4-eval.log"
        } ],
        "severity": "DEBUG",
        "debuglevel": 55
    } ]
}

Debugging client classing (3/3)

• Watch for the test evaluation results in the Kea Eval DHCP4 log file

[kea-server]# tail -f /var/log/kea-dhcp4-eval.log

Resources

• Understanding Client Classification
• Do I need to use shared-networks or not with Kea DHCP?
• Host Reservation in DHCPv4
• Standard DHCP Options Defined in ISC DHCP and Kea
